CC CHANNEL

CC - CHANNEL PENSTOCK

Sealed on 3 sides for installation on open channels and regulation of the flow.

Mainly used for the following applications in:

• wastewater treatment plants

• drain manifolds

• urban small chest

• storm tanks

• desalination installations

• irrigation installations or any other type of hydraulic work where the flow has to be controlled.

General characteristics

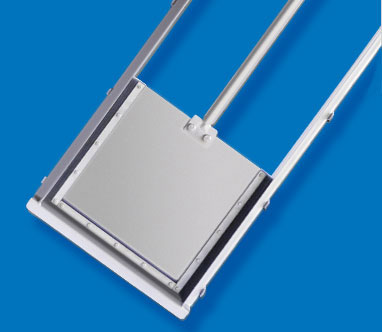

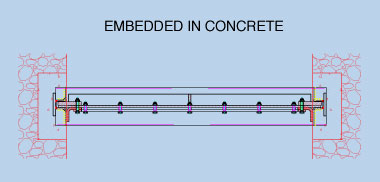

Fabricated square or rectangular port sliding channel gate for installation embedded in concrete and seals on 3 sides. Modulate design so that the frame be closed. Different construction materials, tightness by elastomer seal and guiding system with sliders to reduce coefficient of friction .

Standard manufacturing dimensions 200 x 200 through 2000 x 2000 mm. Other dimensions upon request.









Other materials such as DUPLEX, AISI 904L and so on can be manufactured on request.

UNI-DIRECTIONAL: Fluid going one way.

BI-DIRECTIONAL: Fluid going both-way.

According to the American and European Standards.
AWWAC561-04 - 1.24 l/min per seal linear meter.
Din 19569-4 Class 5 - 0.02 l/sec. per seal linear meter.

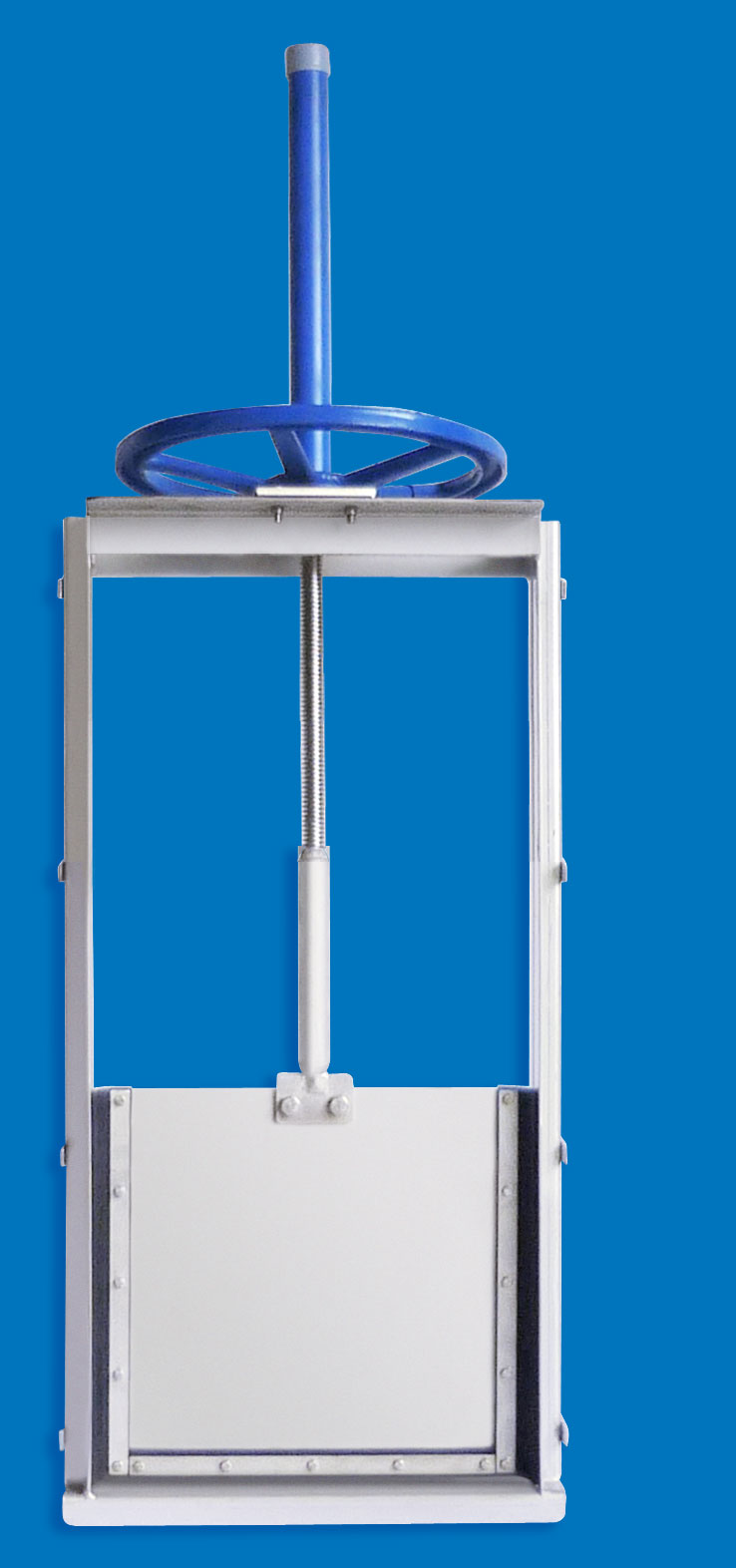

Actuators can be placed directly either on upper frame or with extension systems and column at specified heights.

Other types of actuators upon request.
