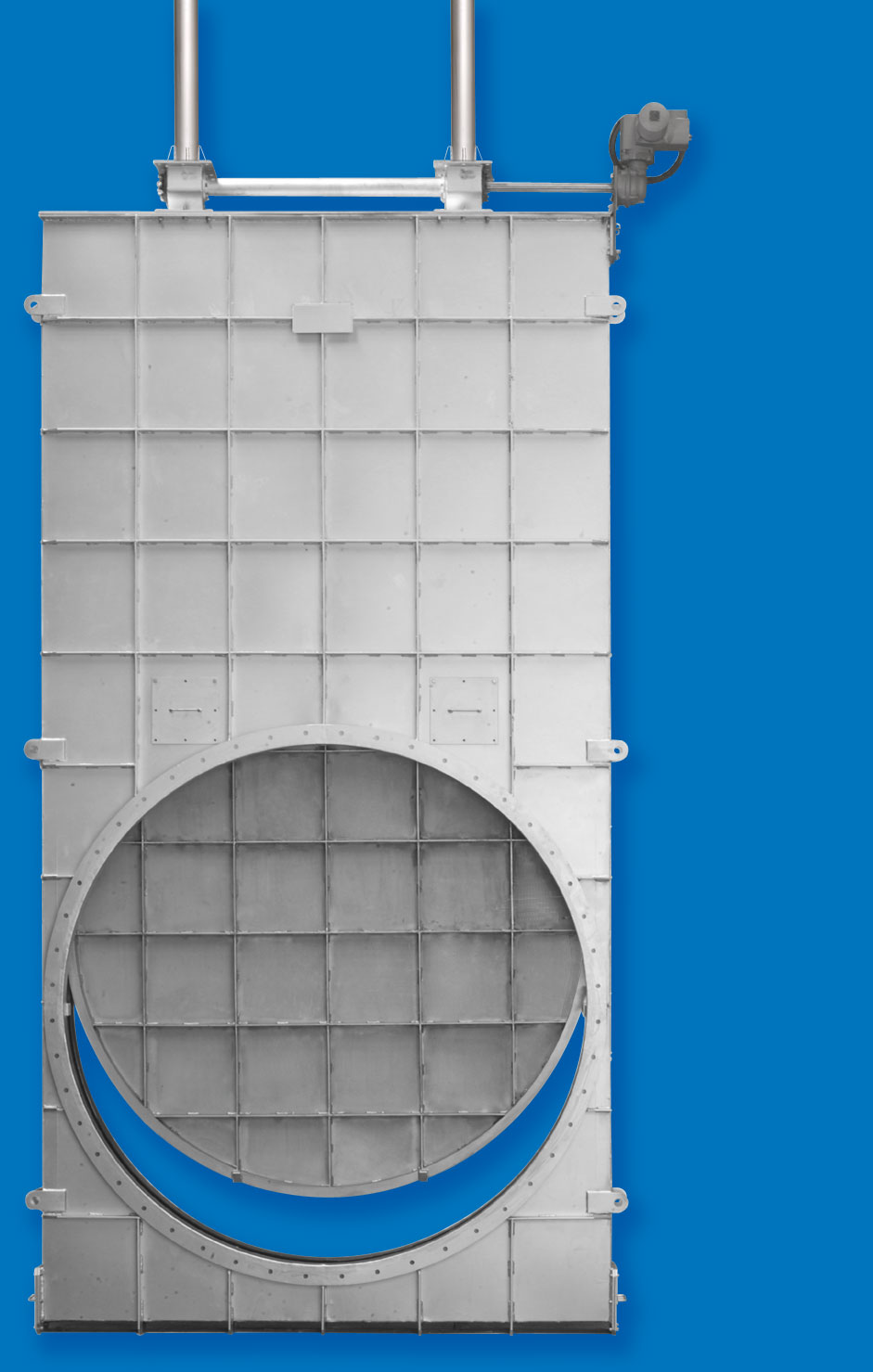

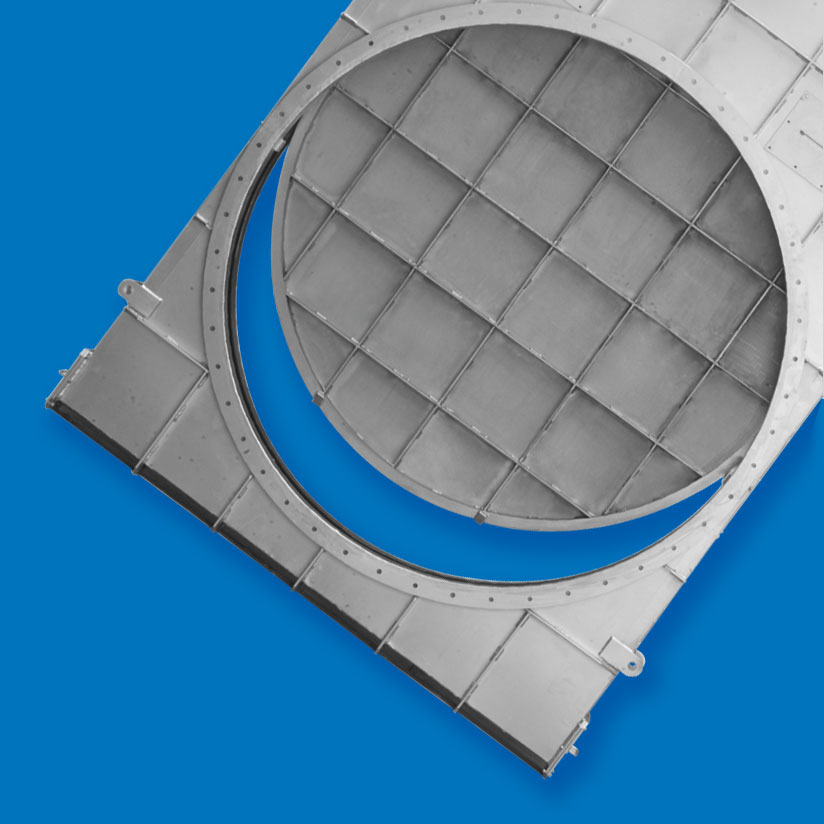

DG KNIFE GATE DAMPER

DG - KNIFE GATE DAMPER

Knife gate damper type DG to be mounted between flanges, relative tightness. Round and square port.

Mainly used for applications in:

• Gas conductions

• High consistency smoke cleaners

With the purpose of obturating or regulating the gas flow.

General characteristics

Guillotine damper type DG to be mounted between flanges.
Fabricated construction. Standard design planned for assembly of actuator shaft be in vertical position.
Manufacture in different kind of materials according to working temperature.
Design dimensions planned for external installation of heat-resistant.
Relative tightness 99%, metal/metal seal.
Limit temperature: 500 º C, limit pressure: 0.5 bar . Top speed: 25 m./sec.

Standard manufacture dimensions for diameter 200 through 2000 mm.

Other materials can be manufactured according to specifications.

Other grades of tightness, upon request
